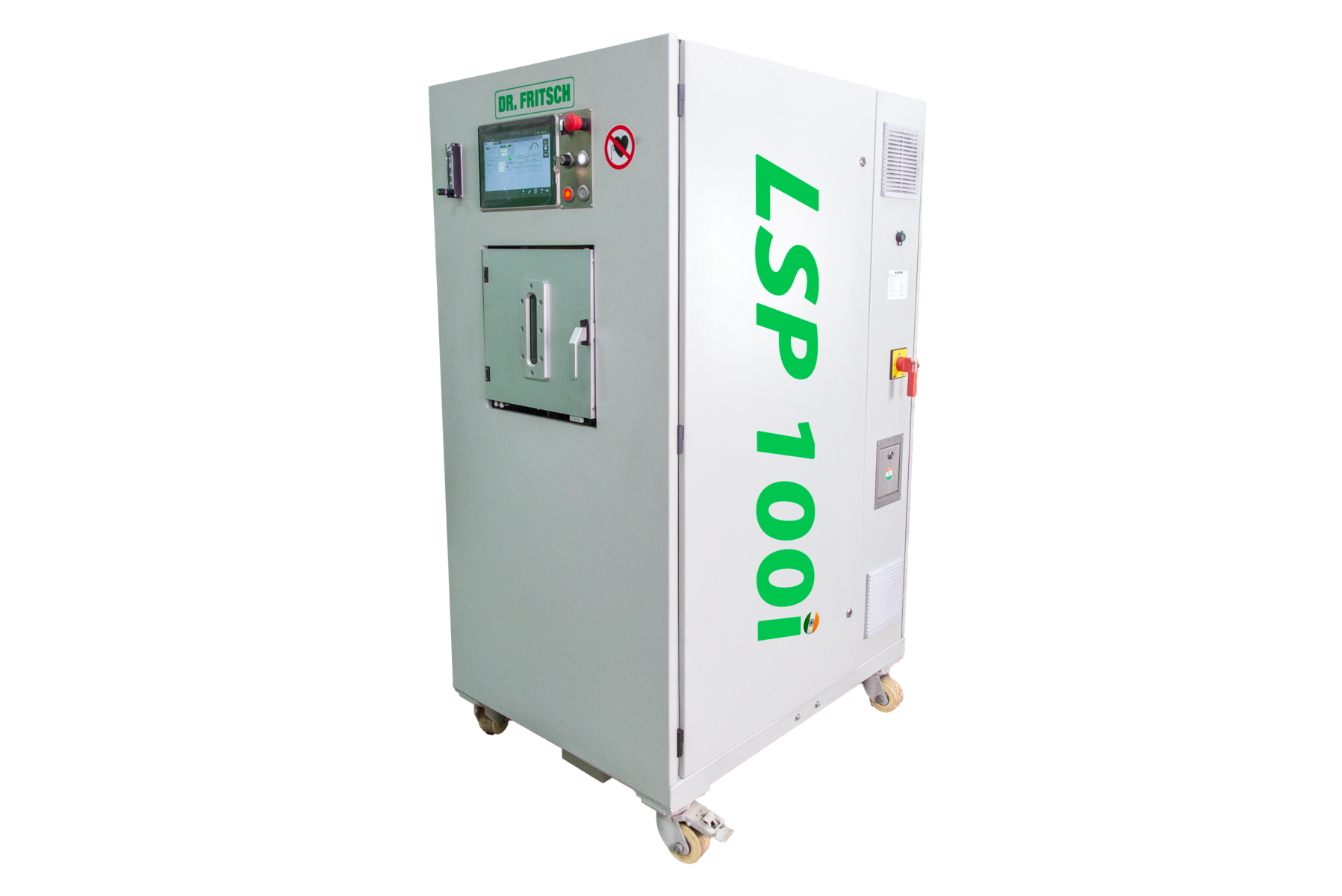

LSP 100i
FAST/SPS-Sintering Press LSP 100i
Task:
- Machine for Universities and Research Institutes
- FAST/SPS sintering of metal and ceramic bonds by precise control of temperature, pressure, stroke and time
Main features:
- Suitable for small components 10-30mm
- Compact design and attached rollers allow flexible positioning in the lab
- Pressing force: 5 - 50 kN
- Graphite electrodes: Ø 100 x 70 mm, 12 - 14 μΩm
- Temperature measurement: Ni-Cr-Ni thermocouple: up to 1,100 °C
- Electronic displacement measurement
- Up to 100 sintering programmes can be stored
SP 75
Sintering Press SP 75
- entry-level sintering press
- high productivity due to short cycle times
- total electric power approx. 85 kVA
SP 120
Sintering Press SP 120
- high productivity due to short cycle times
- total electric power approx. 135 kVA
Overview Sintering Presses
Dr. Fritsch-Quality: | |
for the pressure sintering of
| for the production of various products as for example
|
